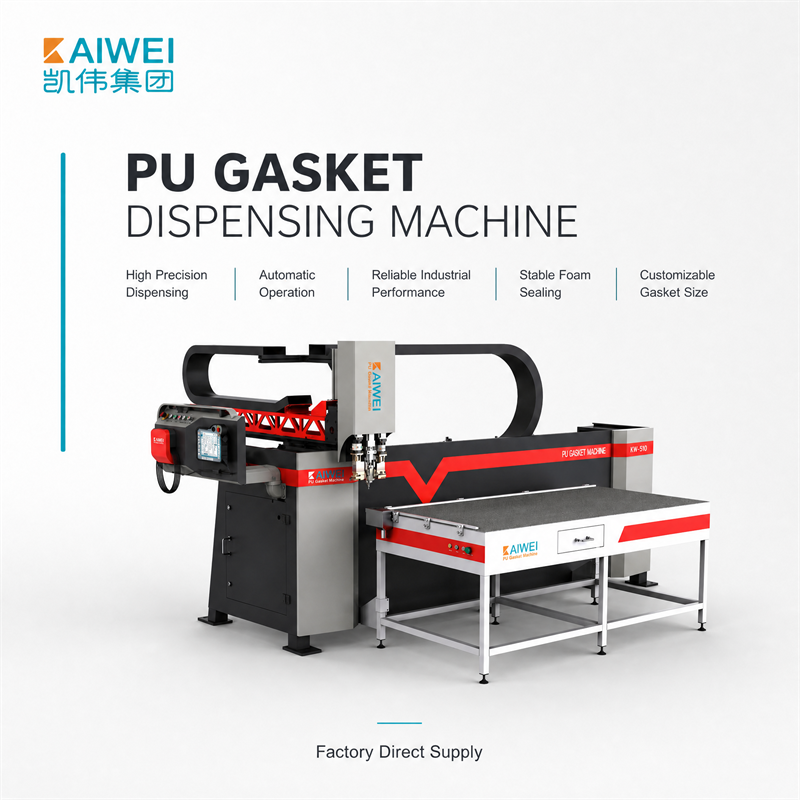

KAIWEI Polyurethane Glue Dispenser Auto Pressure Regulating PU (Polyurethane) CE Certified for Street Lighting KW-520A
- HIGH PRECISION & STABLE DISPENSING - the KW800 mixing head and 3-axis linear robot arm deliver high precision, repeatable bead accuracy, ensuring consistent sealing and minimal material waste for Air Cleaning Filter.
- AUTOMATIC & EASY OPERATION - PLC + touch-screen HMI with teach pendant; a new operator becomes productive within 30 minutes, lowering labor and training cost.
- WIDE MATERIAL COMPATIBILITY - Handles Polyurethane Foam Glue, silicone, epoxy and AB glue for diverse potting, bonding and gasket applications.
- SMART & FLEXIBLE - Constant-pressure control keeps dosing precise without re-weighing; supports program import, multi-language UI and EMS integration for scalable production.
- CERTIFIED GLOBAL SUPPORT - CE / ISO9001 certified, 12-month warranty, OEM/ODM available, serviced in 80+ countries with fast response.
Ideal for: new energy vehicle parts, Rittal-style cabinets, frequency converter enclosures, rail transit components, HVAC & ventilation covers. Upgrade your production line with KAIWEI KW-520A.
- Overview
- Recommended Products
About Us
KAIWEI (Kaiwei Group) is a high-tech manufacturer since 2004 in Shanghai, China, specializing in PU foam gasket machines, FIPFG gasket dispensing systems, automatic gluing equipment, UV flatbed inkjet printers and two-component potting machines. We integrate R&D, manufacturing and technical service to deliver intelligent dispensing and sealing solutions for electrical control cabinets, power distribution equipment, new energy vehicles, HVAC systems, rail transportation and industrial automation.
Our 20,000 sqm manufacturing base is equipped with advanced CNC machinery, precision assembly lines and 350+ professionals, holding multiple patents in sealing technology and automation. All products comply with CE, ISO9001 international standards and are widely used in electrical control cabinets, power distribution equipment, new energy vehicles, HVAC systems, rail transportation and industrial automation.
Core technologies include high precision FIPFG gasket dispensing, two-component polyurethane and silicone metering, PLC-controlled 3-axis and 4-axis robot arms with touch screen HMI, and constant pressure mixing heads for stable, repeatable sealing.
We export to Europe, North America, Southeast Asia and the Middle East, providing free samples, on-time delivery and a global service network. Our mission is to help global partners improve manufacturing efficiency, product quality and sealing reliability.
Discover reliable dispensing and sealing equipment like the KAIWEI KW-520A - engineered for global manufacturers.
Specification
| Item | Specification |
| Raw Material | Polyurethane |
| Component Selection | Two-component/Three-component |
| HMI | Touch Screen |
| Operation Mode | PC |
| Controller | Motion Control Card / Teach Pendant + PLC |
| PC Screen Size | 10.2 Inches |
| Interface Mode | Integrated Operation Box |
| Handheld Operation | Handheld Controller / Teach Pendant |
| Mixing Head Model | KW800 |
| Seal Strip Width | 4–30mm |
| Cleaning Method | High-Pressure Water |
| Mixing Ratio | 1–10:1 |
| Metering Pump | KAIWEI / Barmag |
| Metering Pump Specification | A3cc/r, B0.6cc/r |
| Effective Stroke | 22501250200 |
| Raw Material Tank Structure | Air Pressure Tank |
| Raw Material Tank Volume | A: 40L B: 40L |
| Raw Material Tank Agitation | Tank A: Yes Tank B: No |
| Raw Material Tank Filling Method | Manual / Automatic |
| Filling Station | Optional |
| Air Charging Method | Manual / Automatic |
| Temperature Control Method | Water Temperature Control (Optional) |
| Frame Structure | 3-Axis Linear Robot Arm |
| Running Speed | 0-12000mm/min |
| Guide Rail | KAIWEI / AIRTAC |
| Rack | Rsun |
| Servo Motor | Nidec |
| Reducer | Senad |
| Workbench Structure | Square Tube Welding |
| Dimension | 2000*1000*800 |
| Power Supply | 220V/380V |
| Power | 4kw/5.5kw |
| Air Pressure Requirement | ≥6bar |
| Air Source Treatment | Oil-Water Separator |
| Water Supply | Tap Water |
| Water Tank Function | Front Level Sensor + Outlet Filtration |
